Mercedes W202 fuel hose tank expansion tank

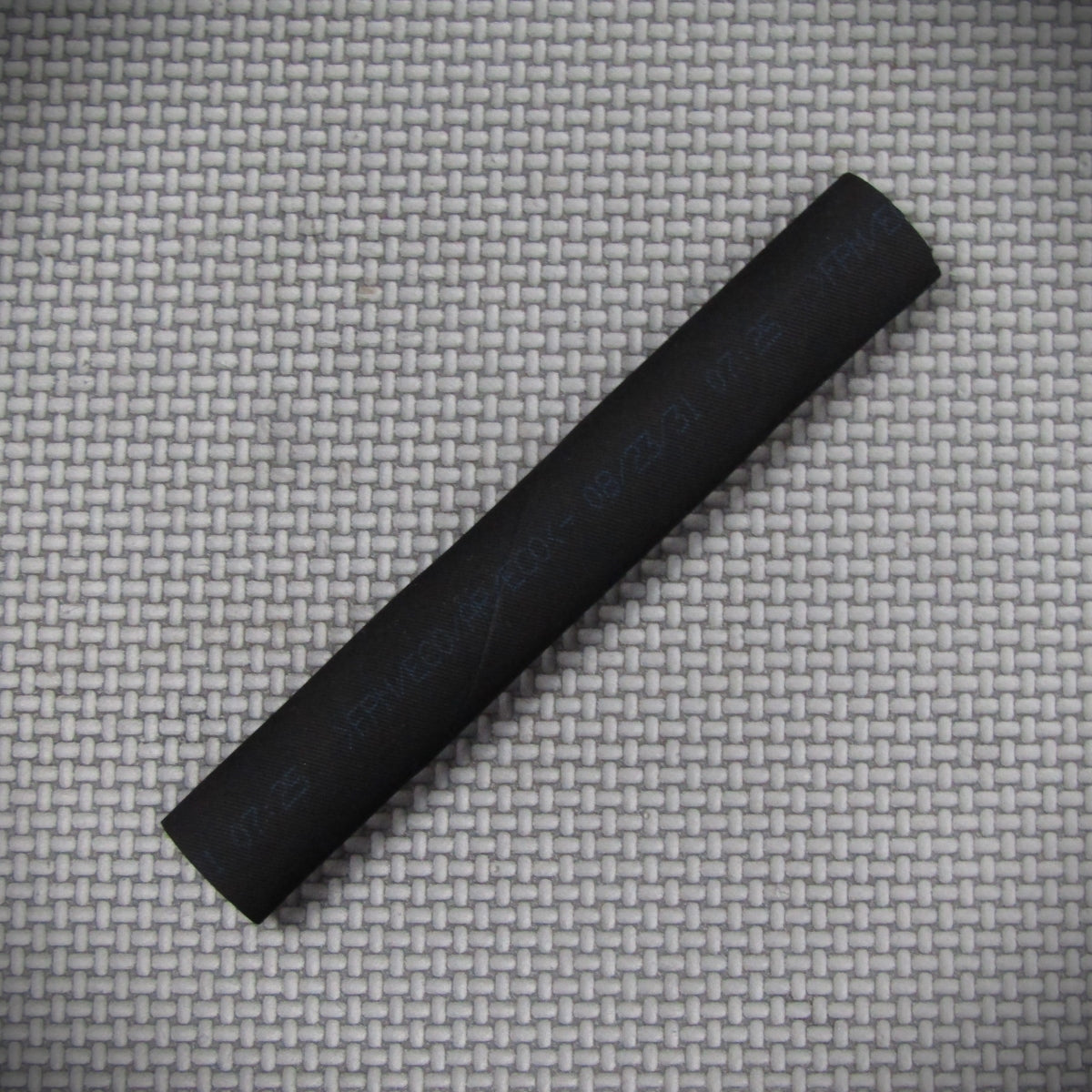

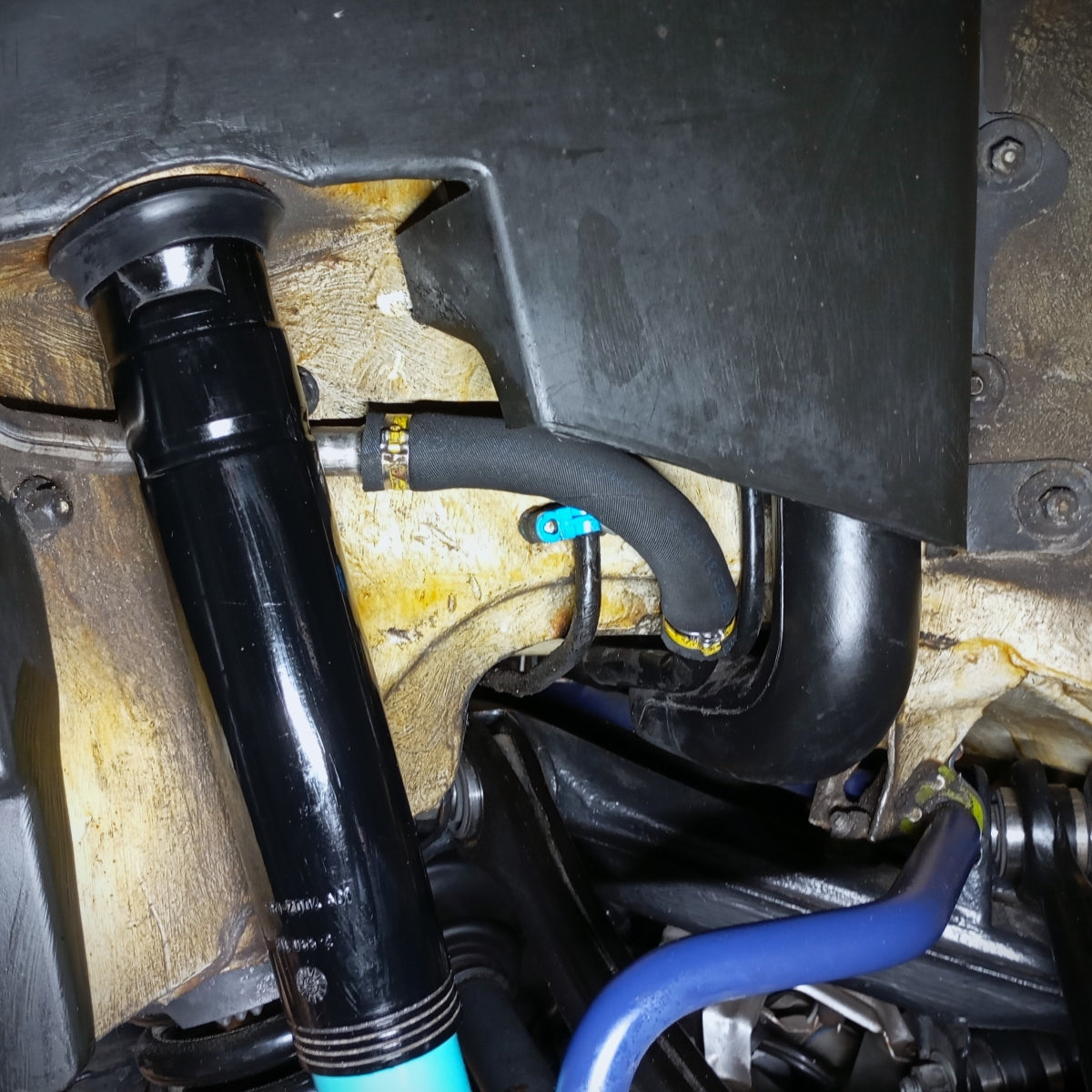

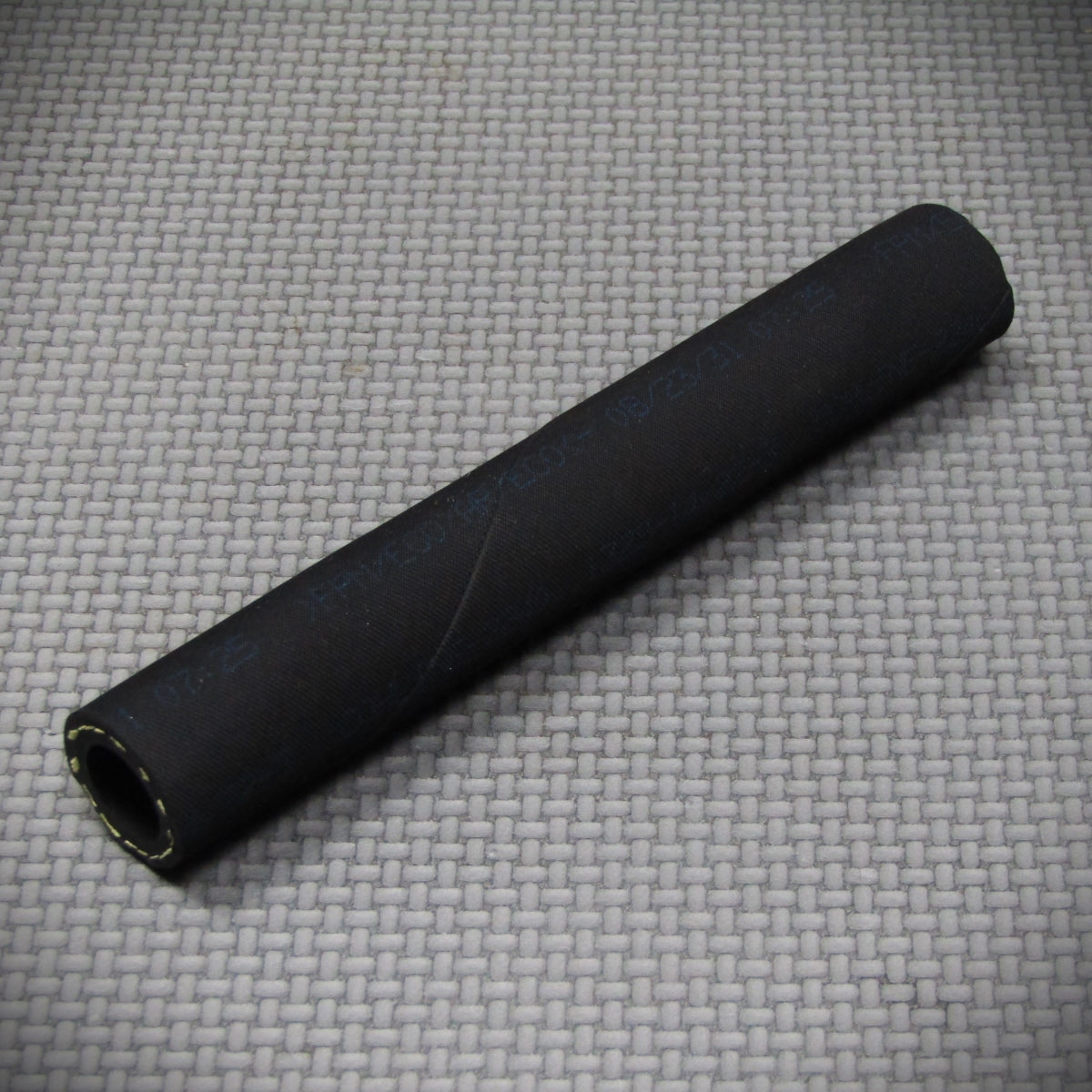

This high-quality fuel hose with an inner core made of fluororubber (FKM) and a stainless steel spiral as kink protection, replaces the original fuel hose between the fuel tank and the expansion tank, which is located in the right rear wheel house.

The original hose is only made of NBR and is therefore not suitable for E10, biodiesel or ethanol. In addition, it sits openly in the right rear wheel house and has been exposed to all environmental influences over the years. Your hose is certainly already cracked and porous. After filling up, the fuel remains in this hose, so a leak can have serious consequences.

Comparison numbers: A2024761726 & A2024768726

Technical details:

• inner diameter 14 mm
• outer diameter 22 mm
• For all current fuel types including E10, E85, biodiesel
• Low permeation
• Inside FPM/ECO, aramid braided insert
• Outside ECO (abrasion-resistant upper rubber)
• DIN 73379 -3E (as of 11/97)
• Temperature range: -40°C to +125°C, briefly up to 140°C
• Internal stainless steel spiral as kink protection

Scope of delivery:

• 15cm hose with the above properties
