This high-quality set of BOSCH Motorsport fuel injectors delivers the perfect injection quantities for extreme performance increases on your Mercedes M111 or M104 turbo conversion, as well as M112 or M113 supercharger conversion. When operated with gasoline and the typical Mercedes system pressure of 3.5 bar, the injectors provide flow rates at a conservative 80% duty cycle that easily allow for power outputs of up to 600 hp on the M111, up to 900 hp on the M104 or M112, and up to 1200 hp on the M113.
These original BOSCH injectors are supplied with adapter pieces that make them compatible with M104 2.8l, 3.2l, and 3.6l fuel rail configurations. They also fit perfectly with the high-performance fuel rails offered in our shop. For the non-EVO M111, the fuel rail must be shimmed by approx. 5mm to position it slightly further away from the intake manifold.
Technical details:
Original BOSCH Motorsport fuel injector
Static flow rate: 970cc/min at 3 bar, 1050cc/min at 3.5 bar
Resistance: 12 Ohm
Design: EV14
Connector type: Bosch EV1
Nozzle head: 7-hole
Spray angle: 30°
Suitable fuels: Gasoline and E85
Please select from the following options:

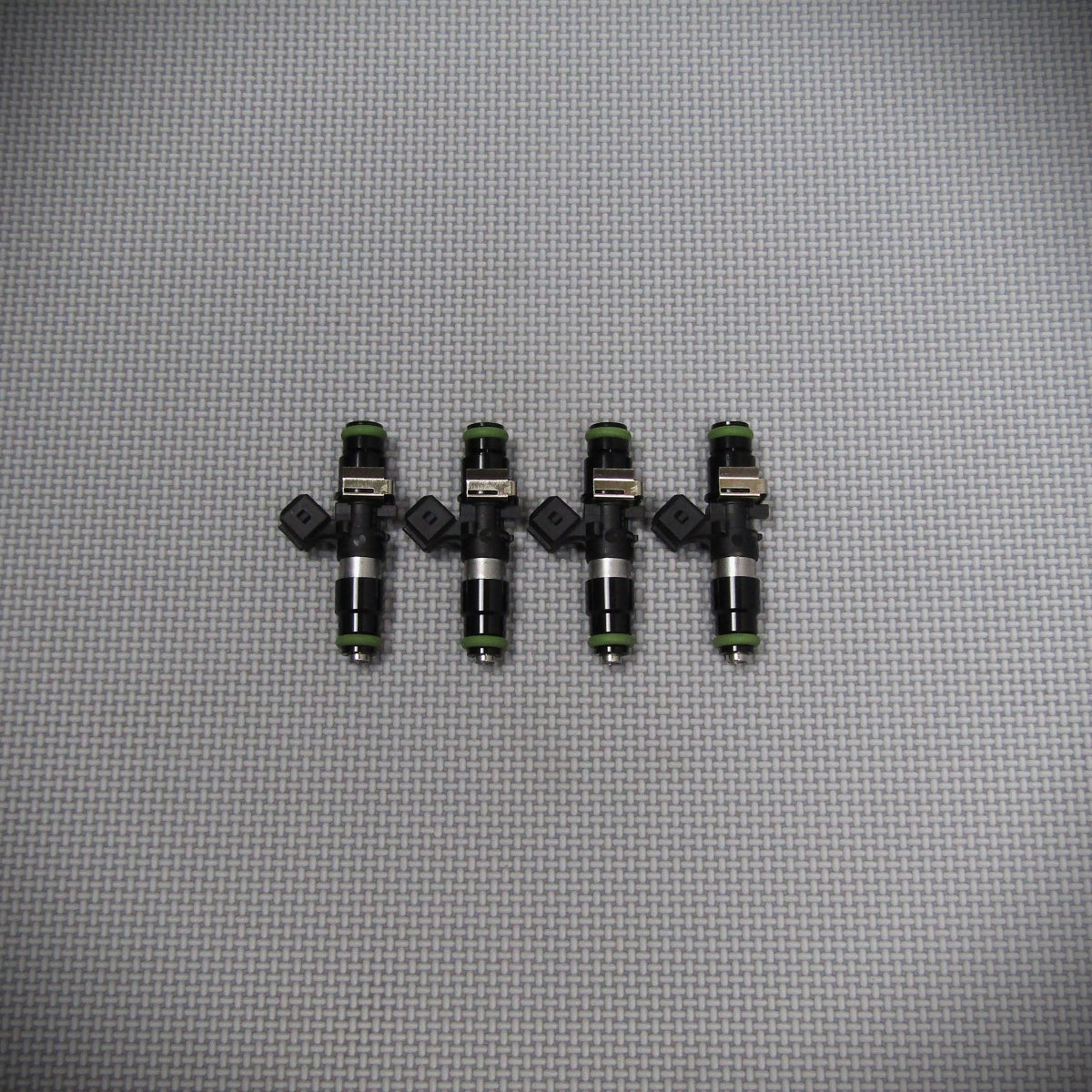

Option 1: Set of 4, for the non-EVO M111
Option 2: Set of 4, for the M111 EVO

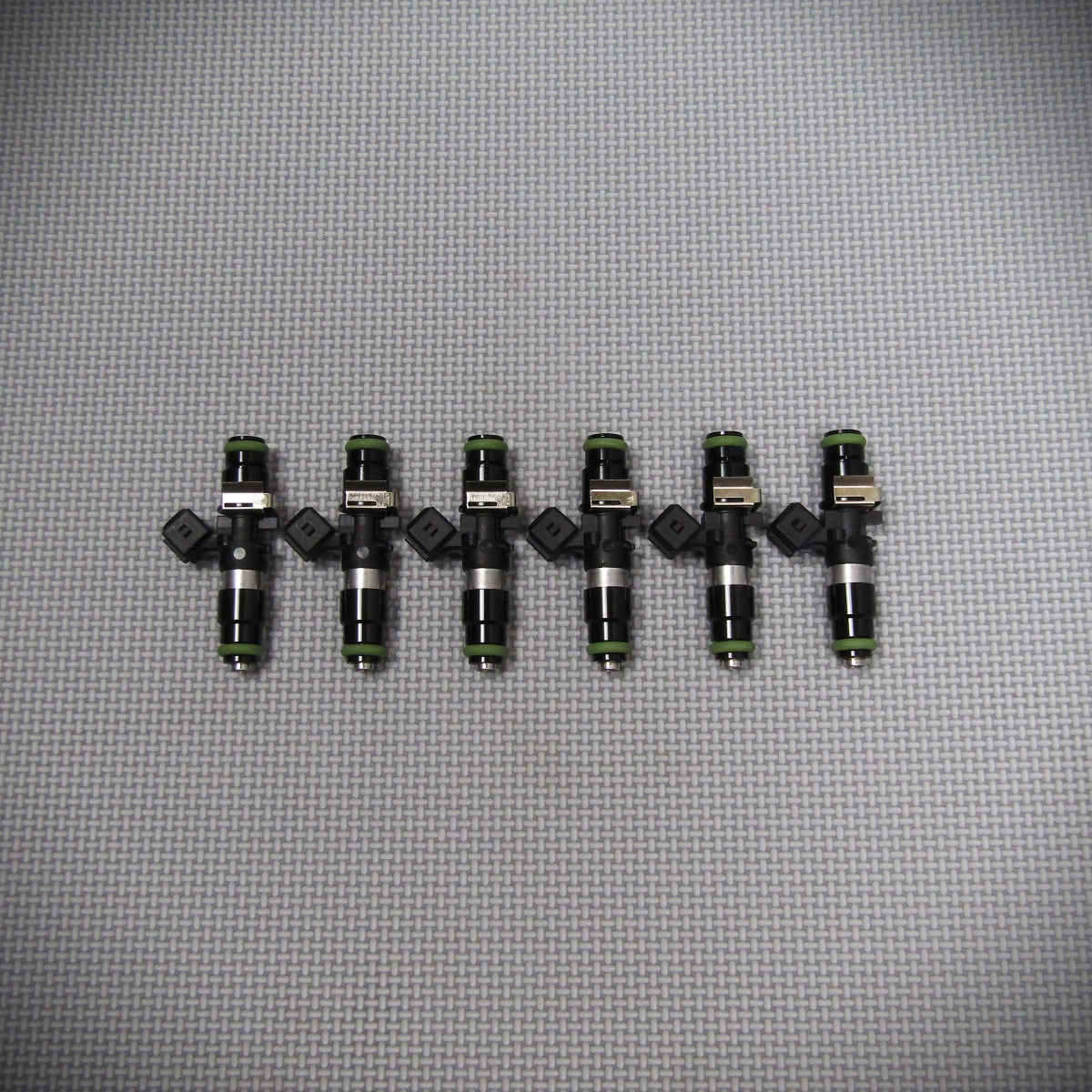

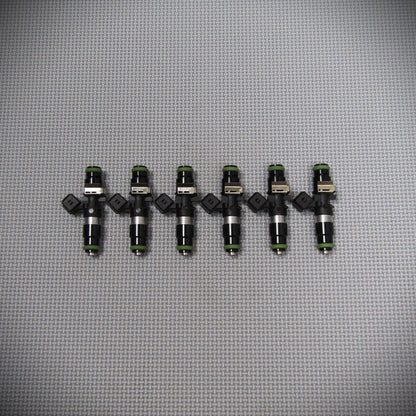

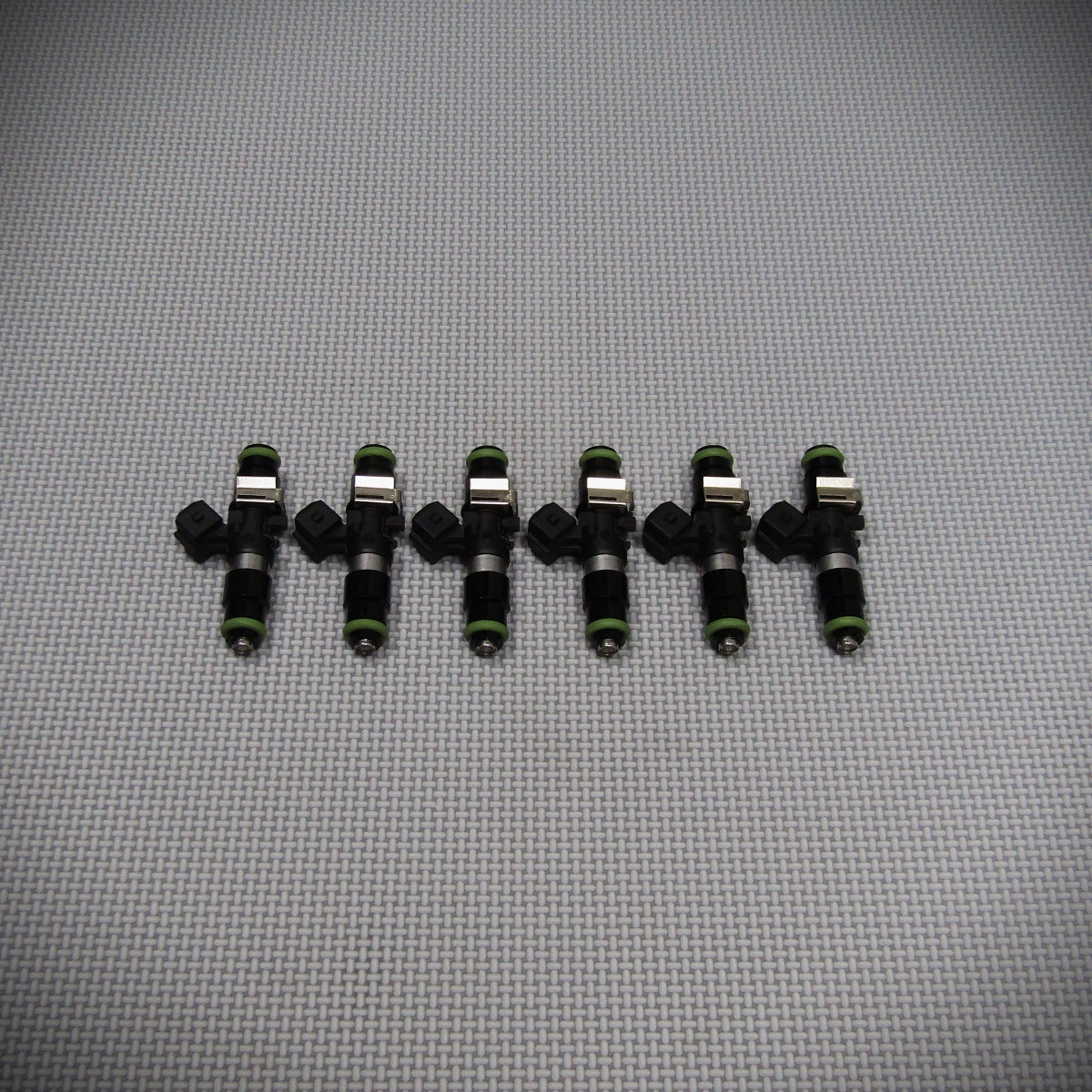

Option 3: Set of 6, for the M104
Option 4: Set of 6, for the M112
Option 5: Set of 8, for the M113
Scope of delivery:

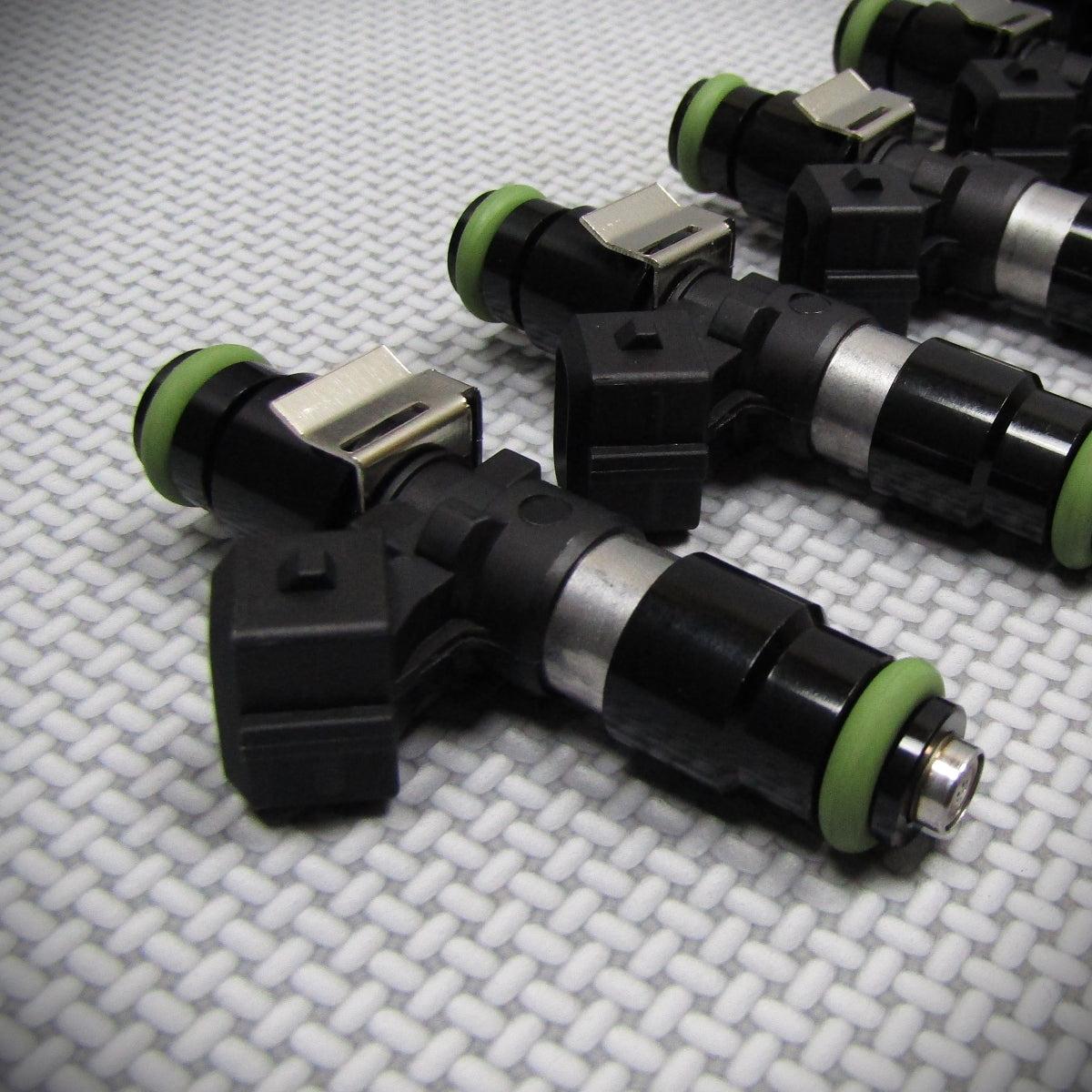

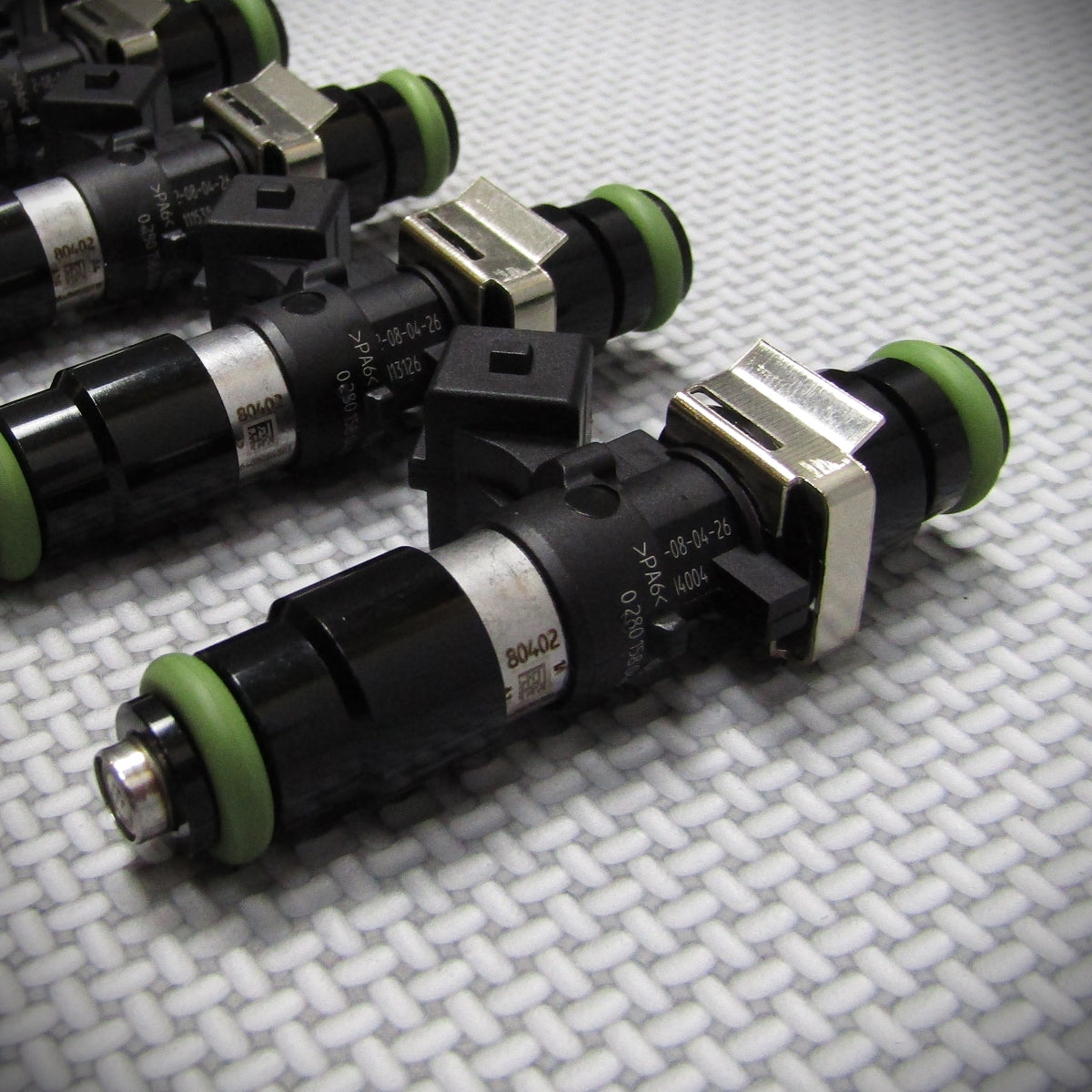

Depending on the option, 4, 6, or 8 fuel injectors as shown
This item is a motorsport product that is not approved for road use under the StVZO (German Road Traffic Licensing Regulations). It may only be used in motorsport. We also refer to §21 and §27 paragraph 2 of the StVZO.
