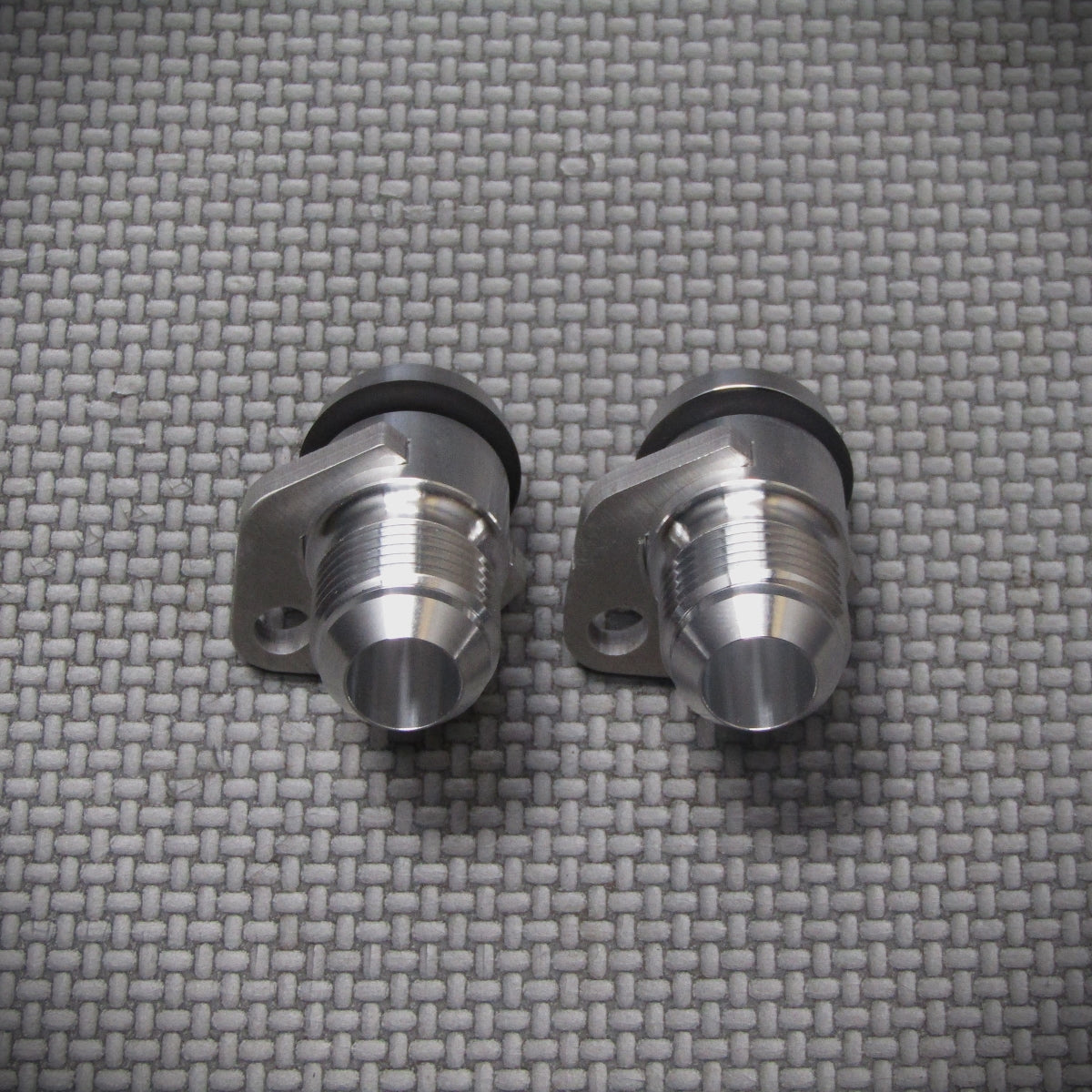

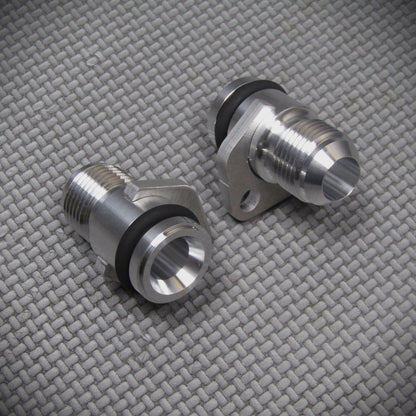

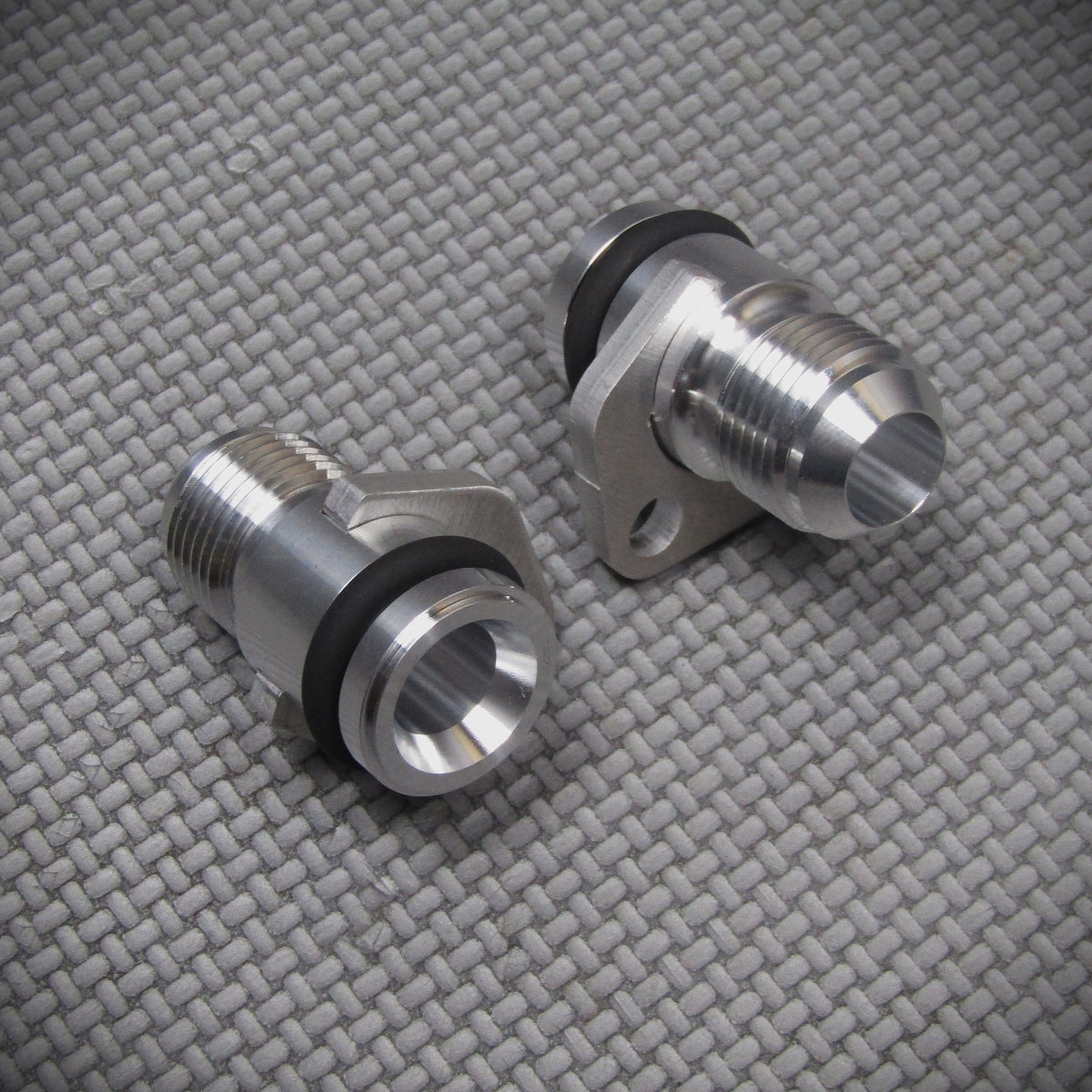

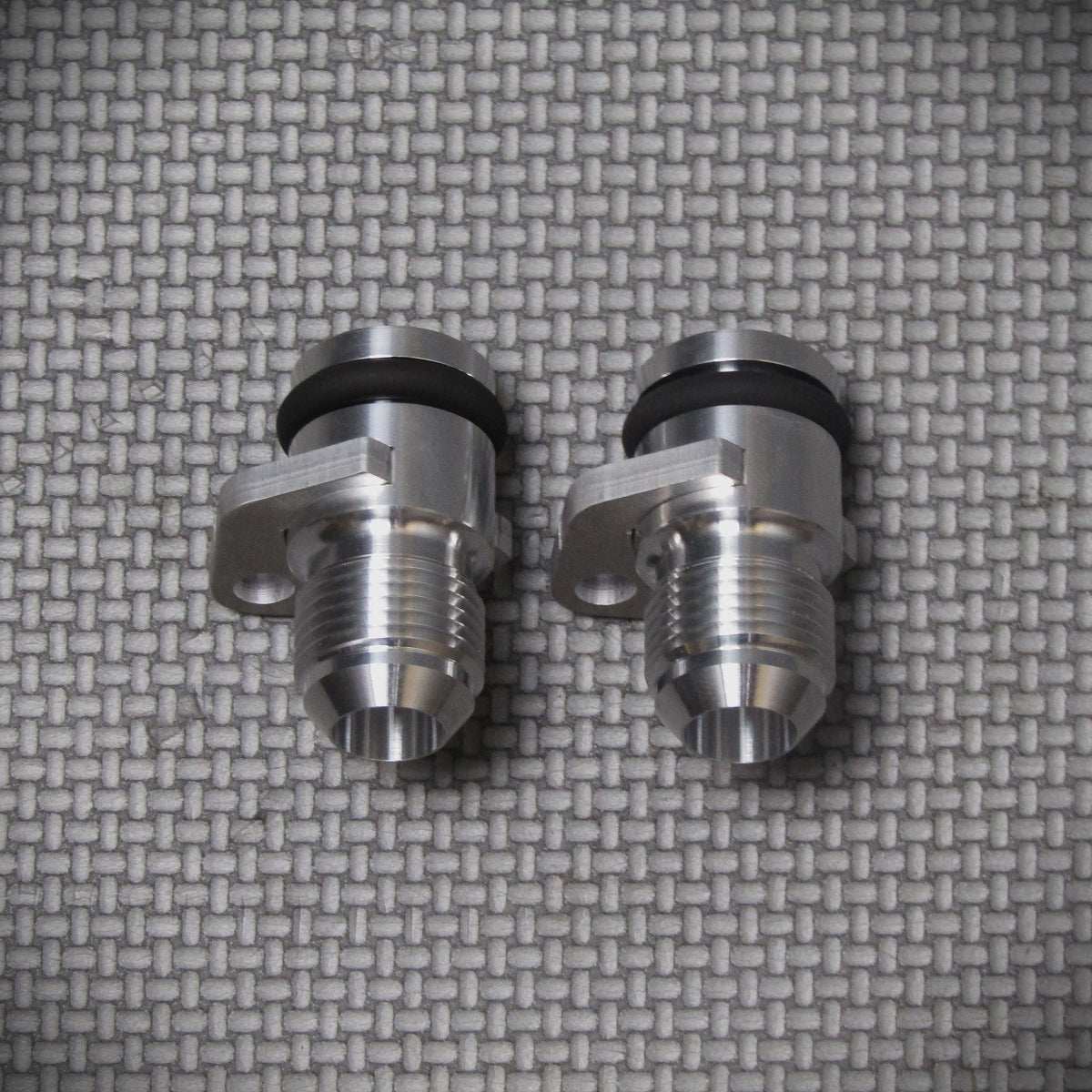

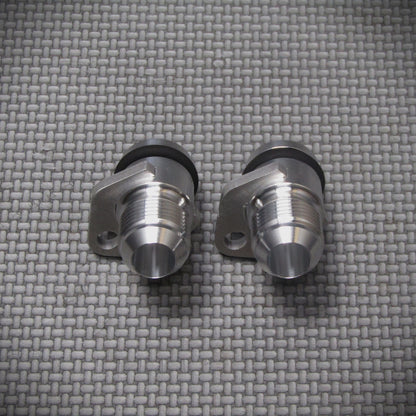

Mercedes M113 M119 OM603 Dash10 / AN10 adapter fittings for oil filter housing
Mercedes M113 M119 OM603 Dash10 / AN10 adapter fittings for oil filter housing
Couldn't load pickup availability
To implement a high-performance conversion on your Mercedes-Benz M113, M119, or OM60X engine with an OM603 oil filter housing, you cannot avoid integrating an equally high-performance engine oil cooling system. The existing original oil cooling circuits with hard lines are generally difficult to modify and improve.
With these Dash10 adapter fittings, the aforementioned engines can be easily connected to the Dash system, thus offering maximum flexibility for building your desired oil cooling circuit.
Please note that the engines mentioned must already have oil filter housings with an external oil cooling circuit. If you are unsure, please contact us before purchasing.
Technical details:
- Connection size: AN10 / Dash10
- Inner diameter of the channels: 13mm
- Material adapter: EN AW-7075 (aircraft aluminum)
- O-ring material: FKM 70 (Viton)
Scope of delivery:
- 2x Dash10 / AN10 adapter fitting
- 2x retaining plate
- 2x O-rings
